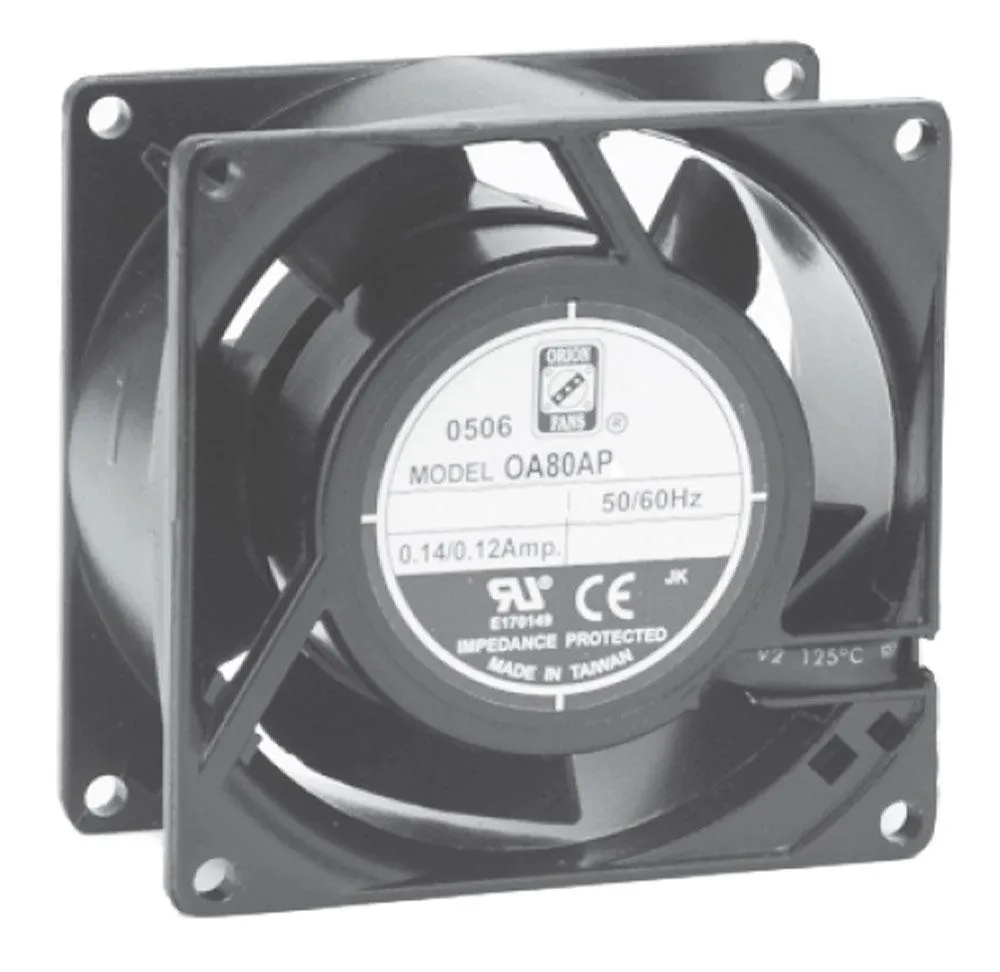

This fan is the high RPM version providing excellent airflow. These fans are typically used in situations where cooling capacity is a must such as DVR cases or on 80mm knock-outs in racks.
Specifications:
Motor: Shaded pole, impedance protected
Frame/Housing: Aluminum die-cast
Impeller: Glass reinforced thermoplastic, UL94V-0
Bearing System: Two ball
Dielectric Strength: 1 min. at 1,500VAC, 50/60Hz
Operating Temperature: -20ºC to 75ºC (-4ºF to 167ºF)
Life Expectancy at 40ºC: 60,000 Hours
Safety Approvals: UL, CUL, TUV standards
Speed: 3000 RPM
Max CFM: 31
Noise: 29dB
Voltage: 115
Voltage Range: 80~130
Watts: 12.0
Maximum Static Pressure: 0.24"
Connections: Terminals
Color: Black
Size: 80mm x 80mm x 38mm (3.15" x 3.15" x 1.50").
