| Product Attribute | Attribute Value |
|---|---|
| Air Flow | 19 CFM (538 L/Min.) |
| Approximate Thickness | 0.6 In. (15 mm) |
| Depth | 0.079" (2mm) |
| Dimensions | 3.15 x 3.15 x 0.591 In. (80 x 80 x 15 mm) |
| Fan Type | DC |
| Height | 3.15" (80mm) |
| Maximum Current | 100 |
| Noise Level | 20 dBA |
| Power Dissipation | 2.4 |
| Power Rating | 2.4 W |
| Primary Type | Fan |
| Shop By | Factory Choice |
| Size, Approximate | 3.2 x 3.2 In. (80 x 80 mm) |
| Special Features | Brushless DC, Auto Restart, Polarity Protected, Locked Rotor Protected Motor |
| Standards | UL, cUL, TUV, CE |
| UPC Code | 5056112037835 |
| Voltage Rating | 24 VDC |
| Warranty | 3 Year Warranty |
Overview

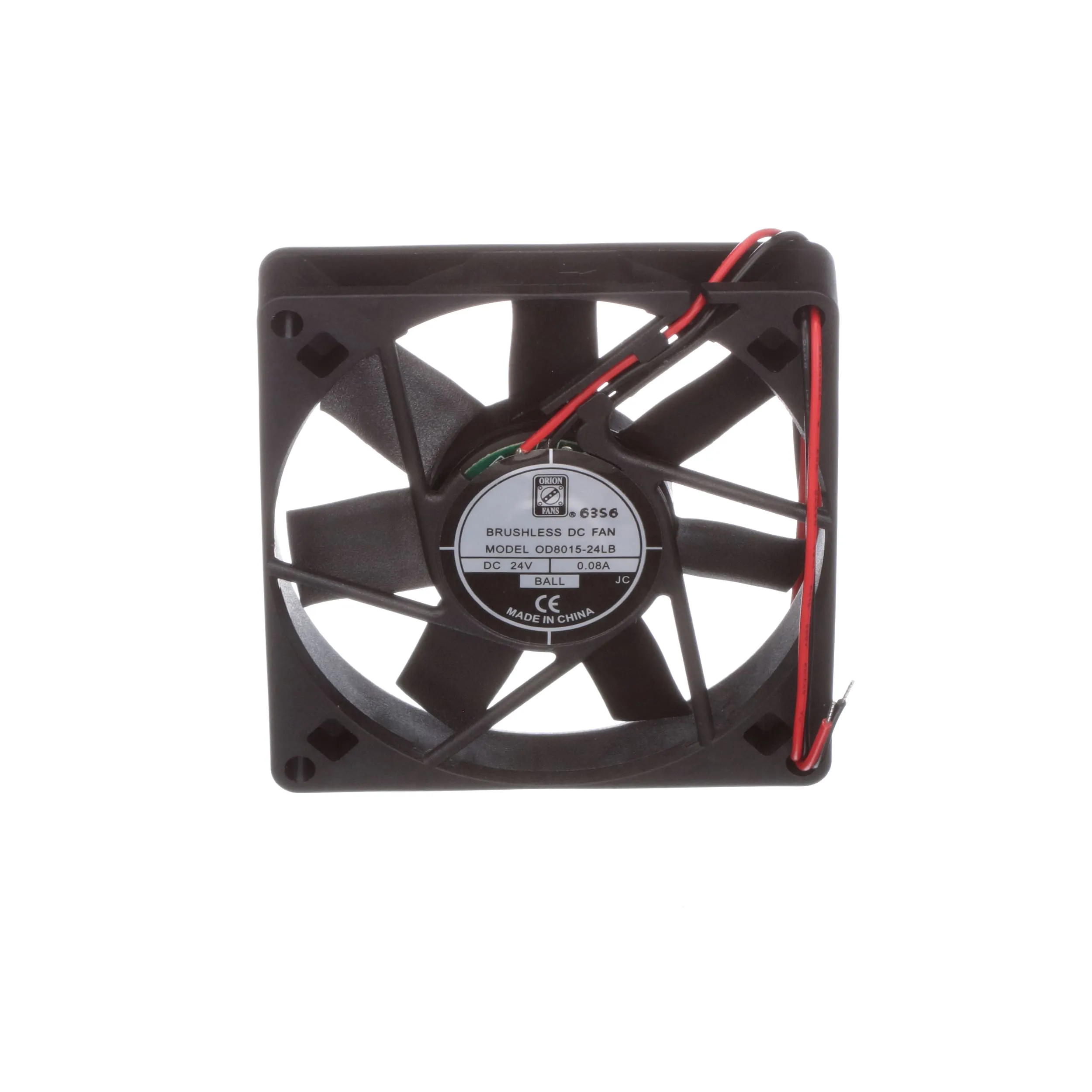

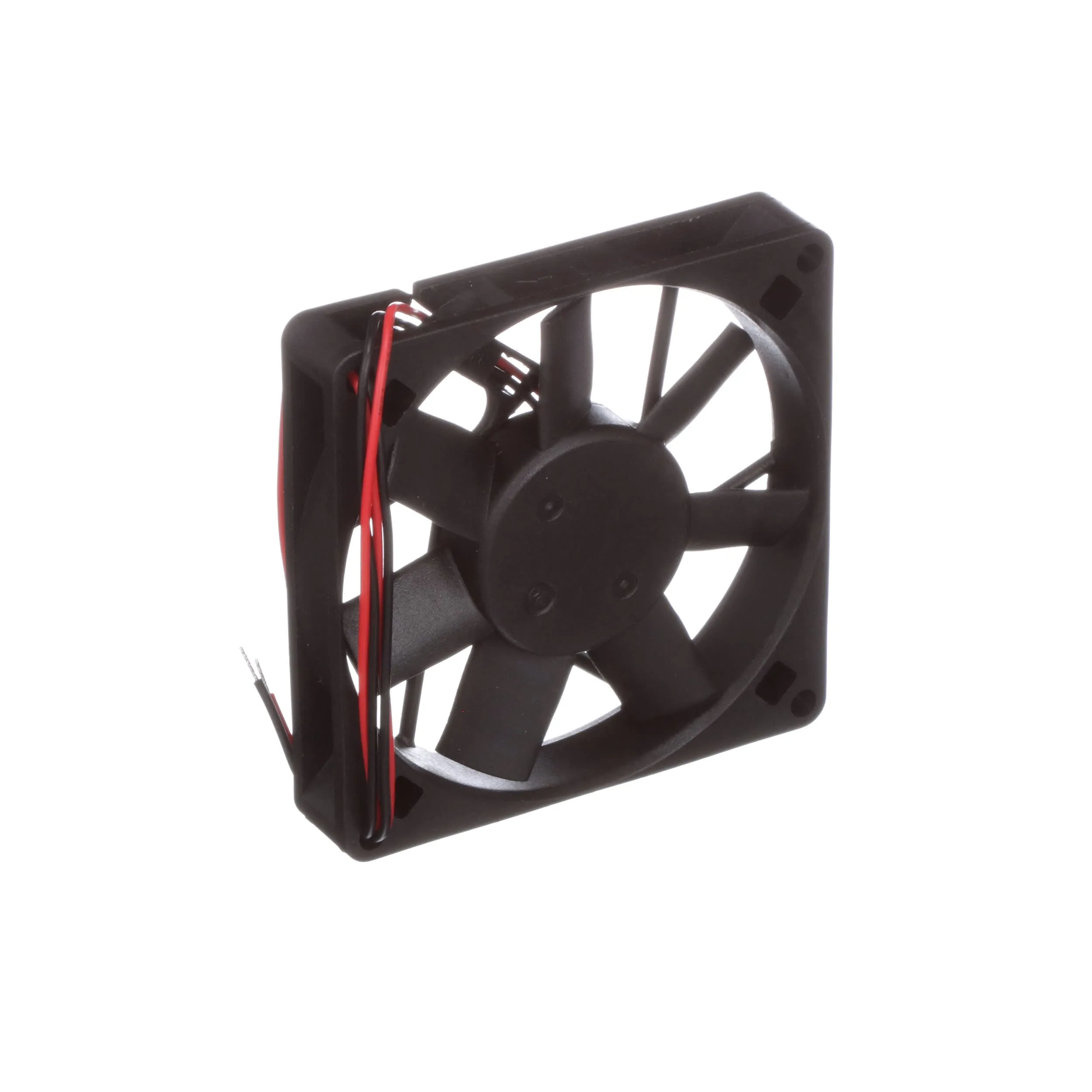

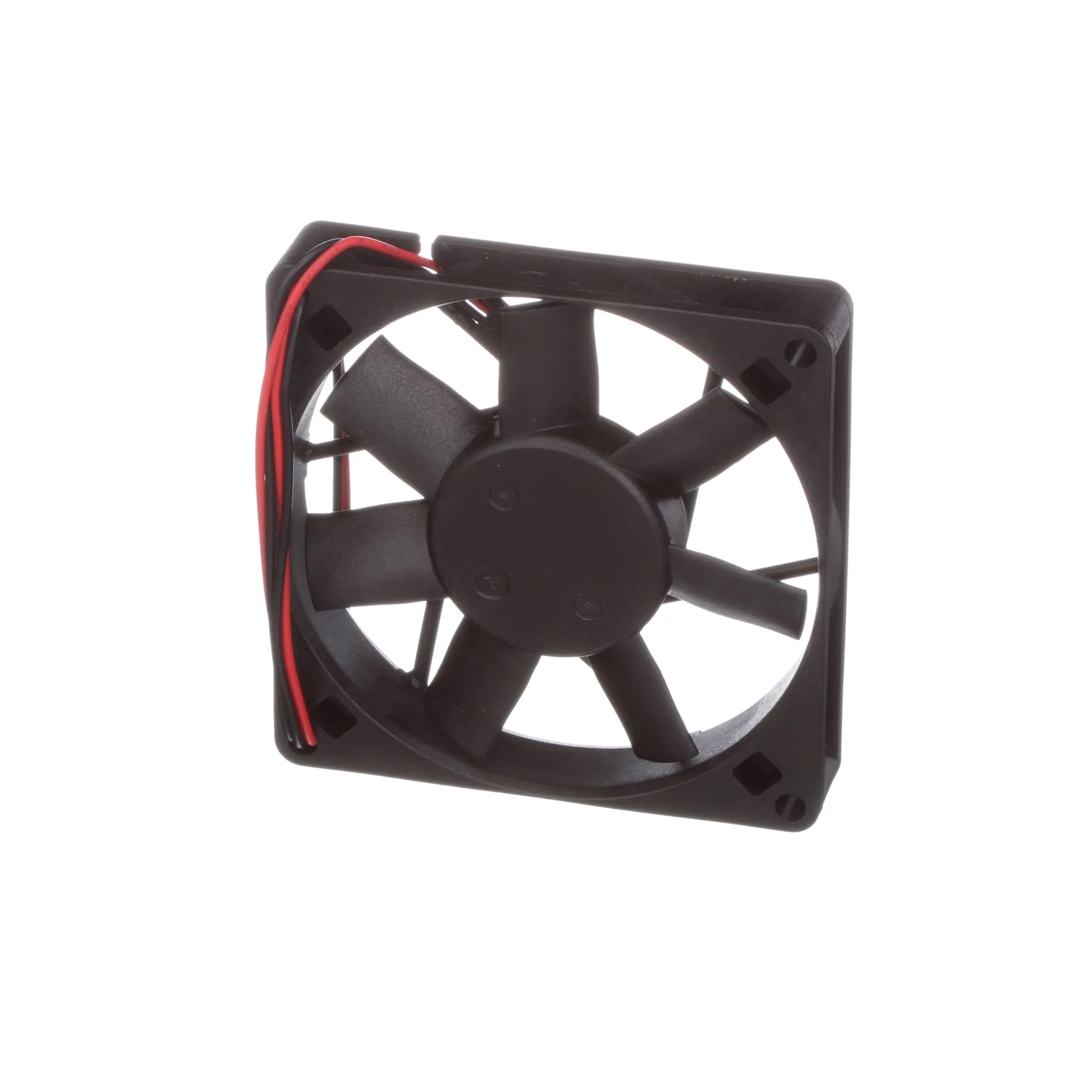

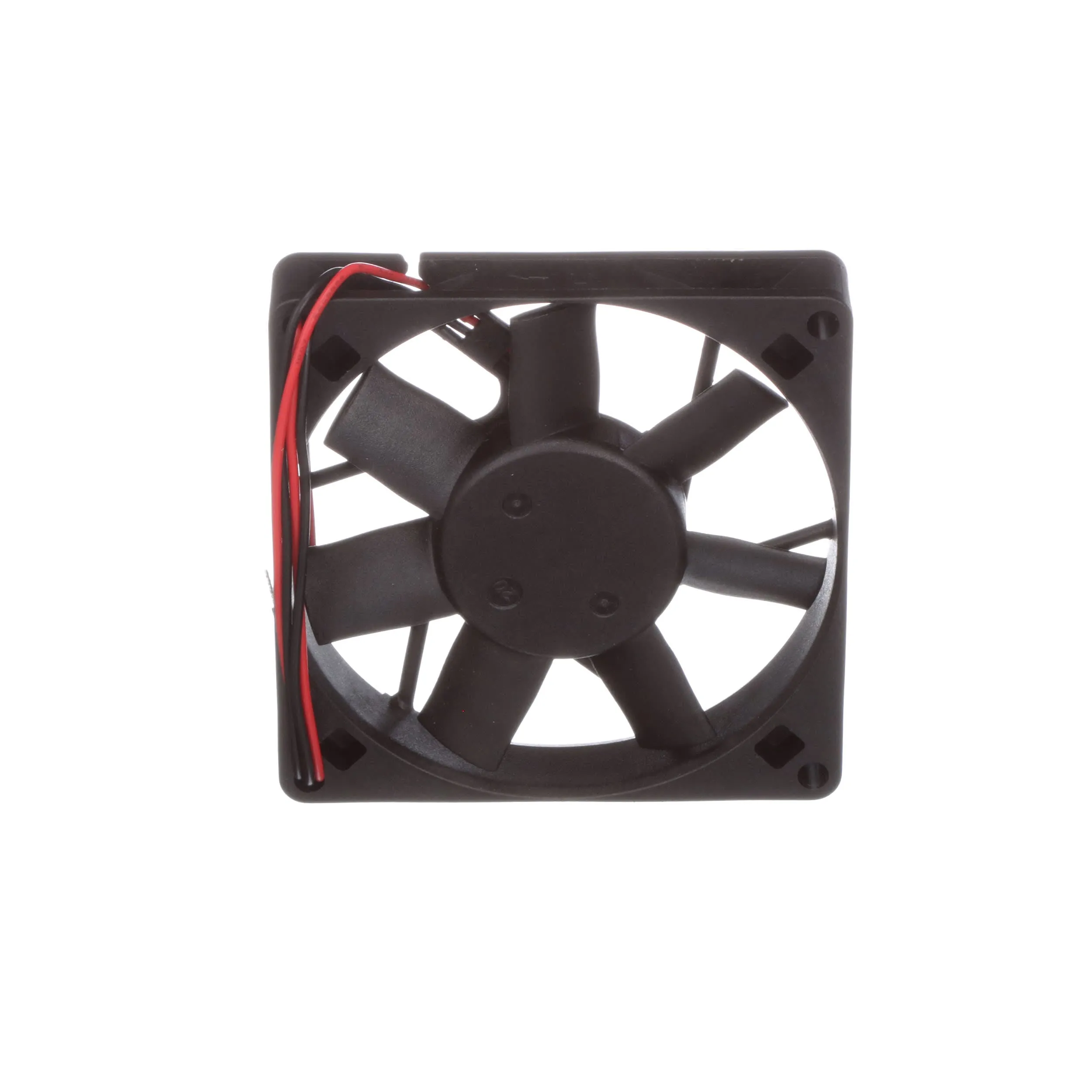

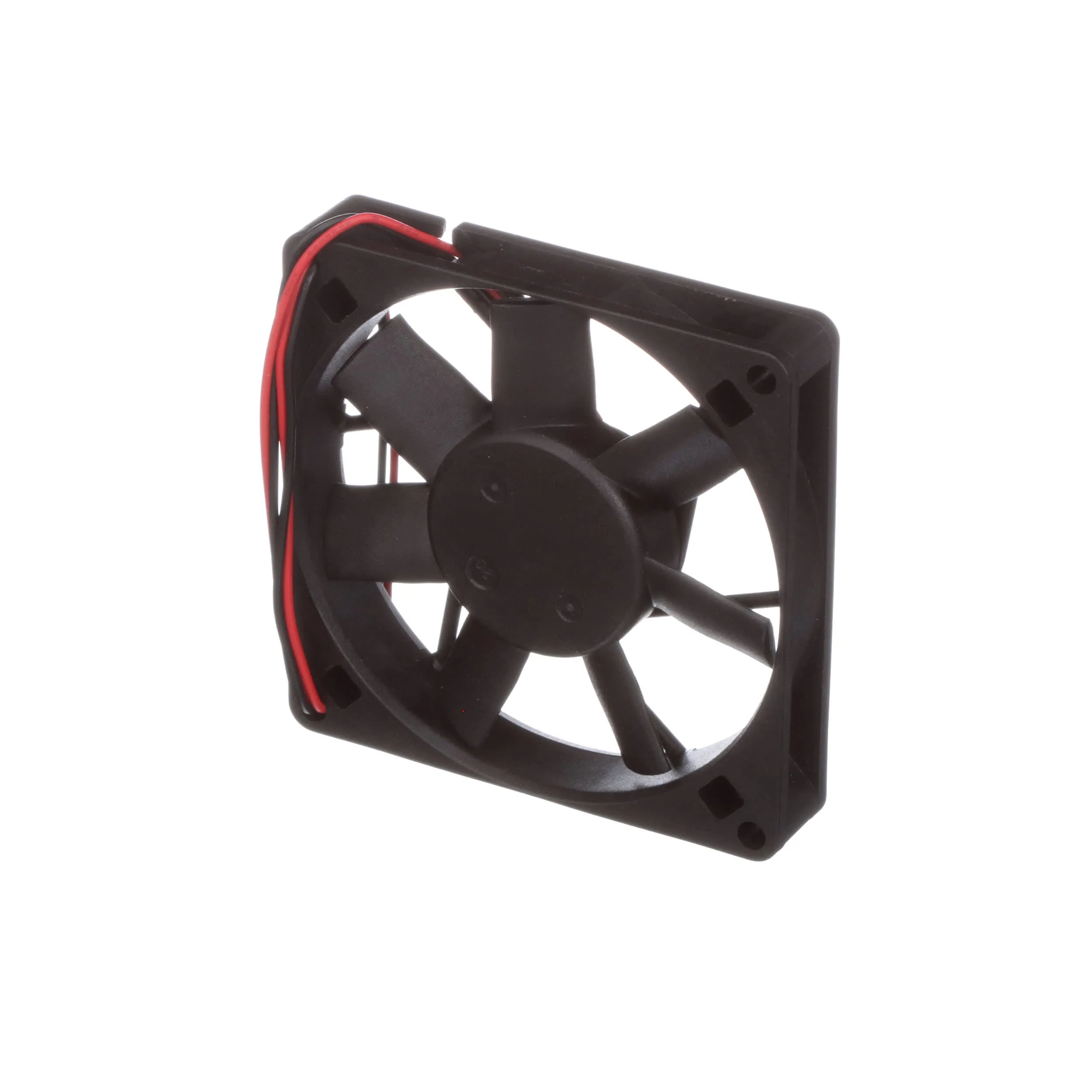

RS Brushless High Performance Ball Bearing Fan
RS brushless high performing ball bearing fans provide a general purpose, compact, cost-effective and reliable solution to a variety of requirements.
